TECHNODRAIN LINEAR CHANNELS

Learn more



Cleaning your Herbish Product

All Herbish® Drainage Systems surfaces are finished to a satin finish, it is important to remember that such a finish can be scratched or marked by improper treatment.

Click on the link below to view our maintenace Dos & Don'ts

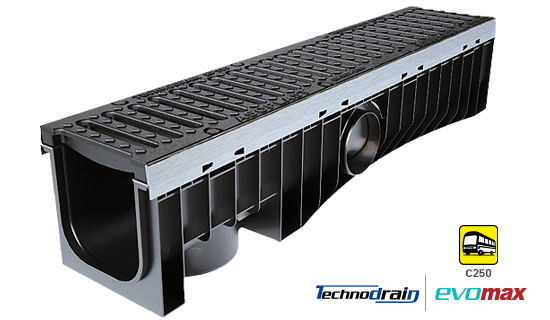

TECHNODRAIN NEOMAX 100

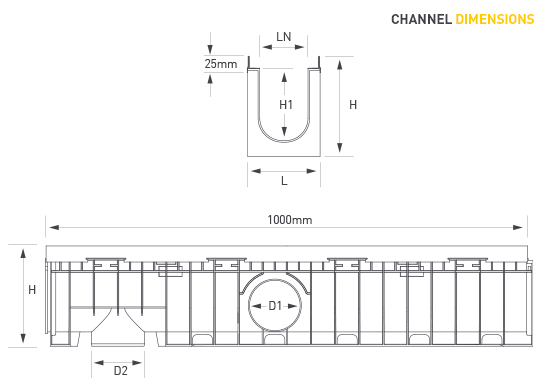

MODEL TYPE
L
H
LN
H1
D1
D2
NEOMAX 150H
200mm
209mm
150mm
150mm
2x ø110mm
1x ø110mm

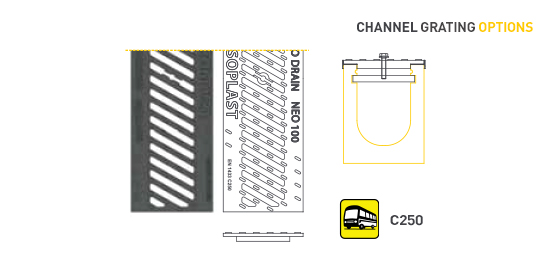

C250 Ductile Iron Grating (10mm Slot)

Fastening by bar and screws for all gratings, two bars are needed per channel
* Custom Stainless Steel gratings can be manufactured to client specification.
  • APPLICATIONS
  • MATERIALS & FINISHES
  • PERFORMANCE
  • INSTALLATION
  • • Designed for both domestic and commercial applications
  • • Ideal for multi-storey car parks and garage entrances
  • • Channels are very durable, offering excellent life-cycle costings
  • • Modular Design
  • • Channel body in PE-HD with a galvanized steel frame, 2mm depth.
  • • Height of frame 25 mm
  • • Horizontal outlets
  • • Fastening of grating with tie bar
  • • Excellent corrosion resistance
  • • High flow rate performance
  • • Easy Installation
